제품소개
차량용카메라

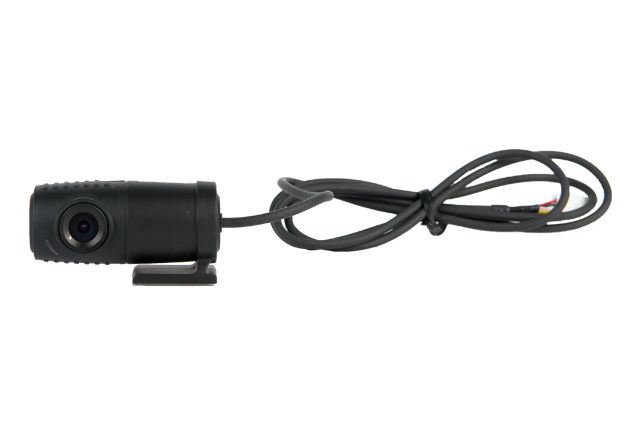

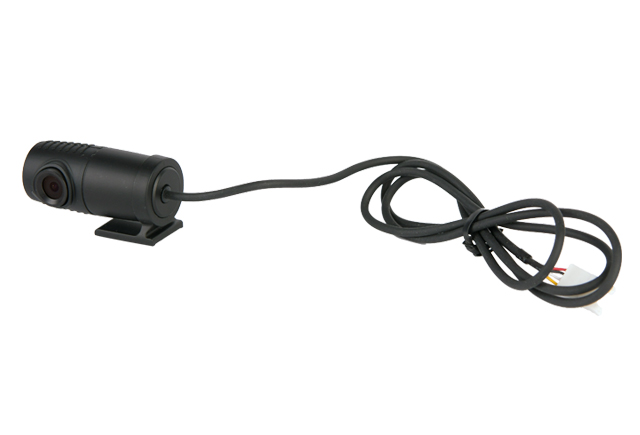

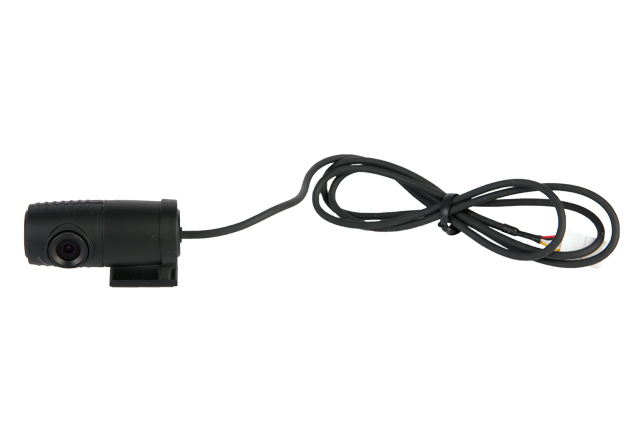

KTC-13MC소형 1.3M 마이크
주요특징
- Sony 1/2.8인치 STARVIS CMOS 센서
- 3D DNR(Digital Noise Reduction)
- 2.8, 3.6 3M 픽셀 렌즈 적용으로 밝고 선명한 화질
사양
| VIDEO |
| Imaging Device |
½.8” FHD STARVIS SONY SENSOR |
| Effective Pixels Number |
1945(H) X 1097(V) |
| Scanning System |
Progressive Scan |
| Transmission Distance |
More than 200m |
| Lens |
120’ lens |
| Horizontal Resolution |
More than 1000 TV lines |
| Min. Illumination |
0.2Lux @(F1.2,AGC ON) |
| S/N Ratio |
More than 41dB |
| Video output |
AHD/CVI/TVI/PVI/CVBS OUTPUT |
| OPERATIONAL |
| Electronic Shutter Speed |
Auto / FLK / 1/60 (1/50) Sec. ~ 1/50000Sec, ETC |
| Gain Control |
Automatic Gain Control (0~18dB) |
| AGC |
Support |
| White Balance |
AWC |
| BLC |
Support |
| Day & Night |
COLOR |
| DNR |
Auto |
| MIRROR |
OFF/ON |
| FLIP |
OFF/ON |
| ENVIRONMENTAL |
| Operating Temperature |
-20℃ ~ +70℃ |
| Operation Humidity |
Less than 80% RH |
| ELECTRICAL |
| Input Voltage |
DC5V/DC12V OPTION |
| Power Consumption |
Max 0.5W |
| MECHANICAL |
| Color |
Black |
| Material |
PC+ABS |
| Dimensions |
Φ30 x 52 mm |
| Weight |
T.B.D |
택시
버스
통학버스
화물차
